C-Simultaneous Band PLL LNB,高频头,GARDINER
商品说明
HS3000 series : Internal reference HS3000X series : External reference Model No. & Frequency (Customized frequency available) Model No. HS3000(X) | Band Band 1 Band 2 | Input Freq. (GHz) 3.4 - 4.2 4.5 - 4.8 | Output Freq. (MHz) 950 - 1750 1150 - 1450 | L. O Freq. (GHz) 5.15 5.95 | Technical Specifications | Parameter Noise temperature | Specification 30’K typ. 35’K max. | Parameter Ext. input frequency & power | Specification 10 MHz, -5 to +5 dBm | Conversion gain | 60 dB typ. | Ext. input port | IF connector (each band) |
| (55 dB min. 65 dB max.) | Input VSWR | 3.0 : 1 max. | Gain flatness | 5 dBp-p max. | Output VSWR | 2.5 : 1 max. | Gain ripple at 36 MHz | 1 dBp-p max. | Input waveguide flange | CPR 229G (with groove) | L.O. stability | Internal : ±5, 10, 25 kHz max. | Output connector | F or N-type female |
| External : depends on ext. ref. | Power supply | +12 to +24 VDC (each band) | Image rejection | 40 dBc min. | Required current | 250 mA max. (each band) | Phase noise | -73 dBc/Hz at 1 kHz | Operating temperature | -40 to +60℃ |
| -83 dBc/Hz at 10 kHz | Waterproof | IP 67 |
| -95 dBc/Hz at 100 kHz | Dimension | 98.8 x 70.0 x 165.0 mm | Output P1dB How to model | +5 dBm min. | Weight | 780 g | ![]() ![]() ![]() ![]() HS3 25 X F

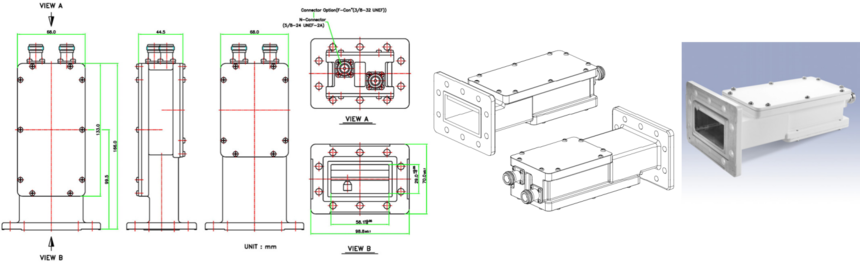

Connector ---------------------- F : F-type female, N : N-type female 10 MHz Reference -------------- Blank : Internal, X : External reference LO Stability --------------------- 00 : External, 05 : ±5 kHz, 10 : ±10 kHz, 25 : ±25 kHz max. C-Simultaneous band PLL LNB Mechanical Diagram |
|
|
