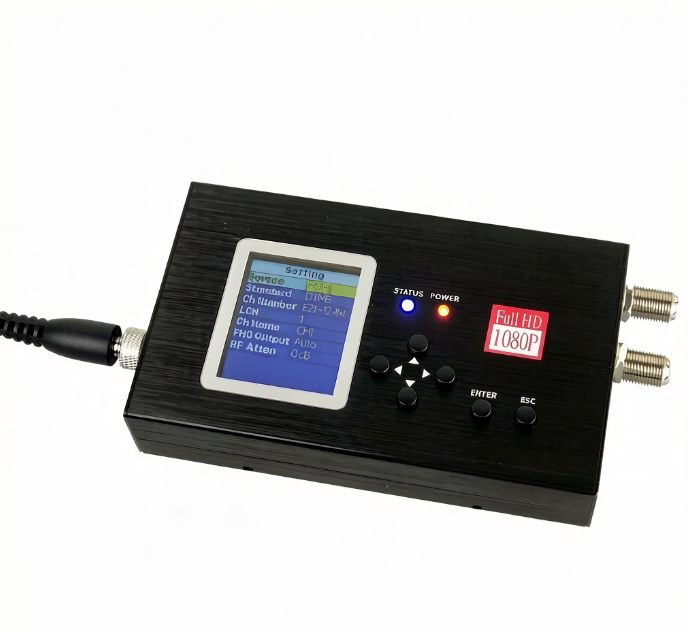

HDMI TV Modulator DMODHM2 PACIFIC

HDMI TV Modulator,DMODHM2,PACIFIC

18688706870
18688706870
18688706870

收藏
商品说明
Features

  • Supports output resolutions up to 1080 60p

  • Easy to use color LCD panel and 6 key buttons

  • Small size and Light weight

  • Support wall-mount type

  • Good ventilation for the device

  • Install multiple units onto your TV system

  • Support DTMB / DVB-T

Specification

DVB-T Standard

Bandwidth6M, 7M, 8M
ConstellationQPSK, 16QAM, 64QAM
Code rate1/2, 2/3, 3/4, 5/6, 7/8
Guard interval1/4, 1/8, 1/16, 1/32
FFT2K, 8K


DTMB Standard

Bandwidth8M
ConstellationGB20600-2006


Encoding Video

EncodingMPEG4 AVC/H.264
InterfaceHDMIx1
Resolution Input720@50p,720@60p, 1080@50i/p,1080@60i/p
Resolution  OutputMax.1080@60p
Bit rateMax.25Mbps


System

EncodingMPEG-1 Layer2, AAC
Sample rate48KHz


Modulator

Management
LCD + Control buttons
Language
English
Upgrade
USB
Basic
Standard/CH Number/LCN/CH Name/FHD Output/RF Atten


General

MER Typ. 35dB
RF range100-950MHz, 1KHz step
RF output level100dBμV(25dB Attenuation)
Power supply12V1A
Dimensions128 x 77 x 28mm
Weight

260g
