1108DHF-1 KU band LNB 高频头

Noise Figure 0.8 dB typ., 0.85 dB max. at room temp. @ CF L.O. Stability ± 10 kHz, ± 25 kHz Phase Noise (SSB) max. -70 dBc at 1 kHz -80 dBc at 10 kHz -90 dBc at 100 kHz Input VSWR 2.2 : 1 max. Output VSWR 2.0 : 1 max. Gain 55 dB typ., 50 dB min., 62 dB max. Gain Flatness ≤ 4 dB p-p (over full band) Output P1dB + 5 dBm min.

Option 1 Option 2 Frequency Band (GHz) L 10.7 - 11.7 10.95 - 11.7 H 11.7 - 12.75 11.7 - 12.75 L.O. Frequency (GHz) L 9.75 10.00 H 10.75 10.75 IF Frequency (MHz) L 950 - 1950 950 - 1700 H 950 - 2000 950 - 2000

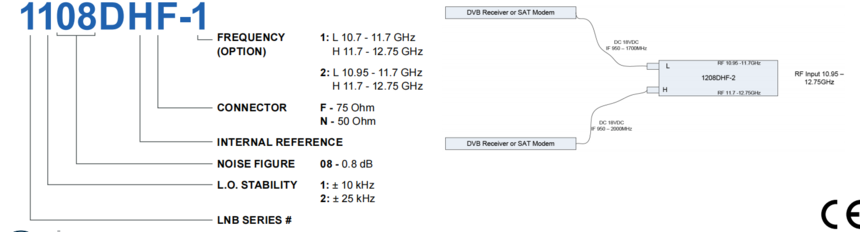

FREQUENCY 1: L 10.7 - 11.7 GHz (OPTION) H 11.7 - 12.75 GHz 2: L 10.95 - 11.7 GHz H 11.7 - 12.75 GHz CONNECTOR F - 75 Ohm N - 50 Ohm INTERNAL REFERENCE NOISE FIGURE 08 - 0.8 dB L.O. STABILITY 1: ± 10 kHz 2: ± 25 kHz LNB SERIES #
