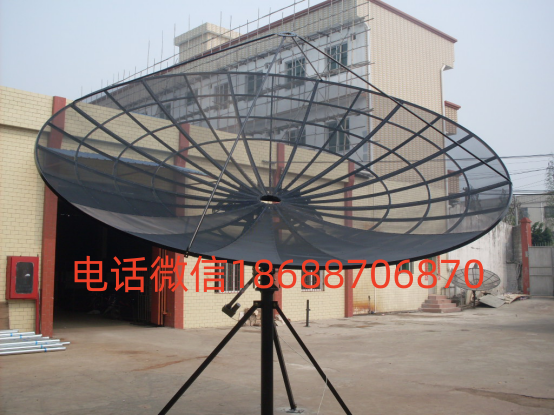

ST-7 Satellite Mesh Antenna PACIFIC Eight

ST-7,Satellite Mesh Antenna,PACIFIC,Eight,卫星天线

18688706870
18688706870
18688706870

收藏
商品说明

ST-7 Satellite Mesh Antenna PACIFIC Eight

Features

  • Pro-form aluminum reflector

  • C/Ku mesh

  • Powder-coat finish

  • Wind-resistant structure

  • 8 Point Pro-from 32” mount

  • 4 Point Pro-form 24” mount

  • Quad feed support

  • Ideal for TVRO / SMATV application

Specification


General

Type

4 Section
Operation Frequency1 ~ 13 GHz
Diameter

2.3 m (7.5 ft)
Reflective MaterialAluminum
Mesh Thickness0.7 ± 0.05 mm
Mounting

Polar mount
F/ D Ratio

0.3766
Pole Size (O.D)76 mm (3”)
Focal Length866.25 mm (36”)
Gain at 4.2 (GHz)37.08 dBi
Gain at 12.2 (GHz)46.5 dBi
Frist Side Lobe≤-14
Feed

Prime focus



Quad feed



Support
EL Travel Range5° ~ 90°
AZ Travel Range0° ~ 360°
Withstand Wind (Operation) 8 degree wind72 km / h

(Able to receive)10 degree wind100.8 km / h

(Survival upright)12 degree wind133.2 km / h
Net Weight34.3 kg
