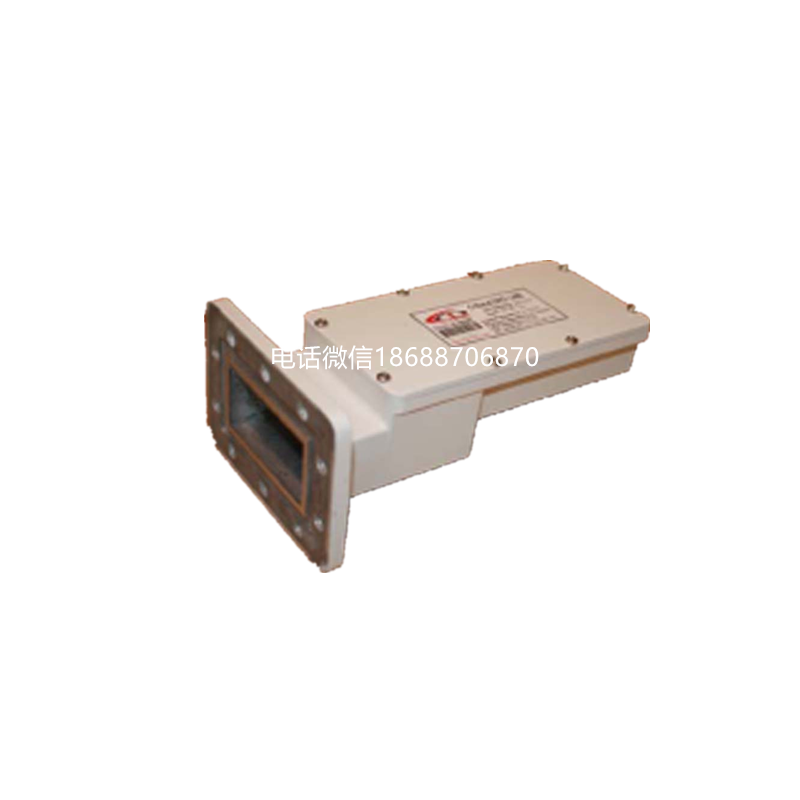

ALF3448(X)/N Actox Full C-Band (3.4 - 4.8 GHz) PLL LNB 高频头 降频器 低噪声放大器


ALF3448(X)/N - Actox Full C-Band (3.4 - 4.8 GHz) PLL LNB

L.O. 5.75 GHz

+/- 5, 10 or 25KHz Stability or External Reference

Smallest package size and weight

RoHS compliant

Three year warranty

ModelRF FrequencyLocal FrequencyLocal StabilityIF FrequencyIF ConnectorALF3448(X)/N3.4 to 4.8 GHz5.75 GHz+/- 5, 10 or 25KHz950 to 2,350 MHzF or N type



18688706870
18688706870
18688706870

收藏
商品说明

ALF3448(X)/N - Actox Full C-Band (3.4 - 4.8 GHz) PLL LNB

ParameterValueInput Frequency3.4 - 4.8 GHzLocal oscillator5.75 GHzConversion gain65 dB typ.(55 dB min.65 dB max.)  Input VSWR2.5 : 1 max.  IF connector“F” or “N” - type female  RF interfaceWR-229 GPhase noise-73 dBc/Hz @1KHz-83 dBc/Hz @10KHz-95 dBc/Hz @100KHzPower supply+12 - +24V DCOperating temperature-40C - +60CDimensions & housing98.8 (L) x 70.0 (W) x 164.5 (H) mm.3.88” (L) x 2.75” (W) x 6.47” (H)




ParameterValueOutput frequency950 - 2350 MHzGain flatness6 dBp-p max.Gain ripple at per 36MHz1 dBp-p max.Output VSWR2.5 : 1 max.L.O. stability+/- 5, 10 or 25KHz max.Image rejection40 dBc min.Ext. input freq. & power10 MHz, -5 to +5 dBmExt. input portIF output connectorNoise temperature30’K typ. 35’K max.Current250 mA max.Storage temperature-40C - +80COutput P1dB+5 dBm min.Weight575 g. (1.26 lbs)
